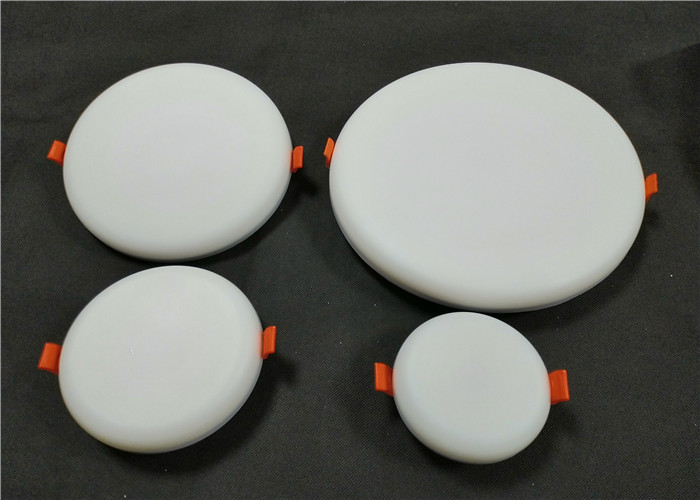

Round Adjustable Frameless Flush Mount 9W LED Panel Light Coffered Ceiling
Product Description
• Adjustable panel design , it means no need to worry about cut out size , just adjust back clips distance, you can install the unit easily.
• Panel Light size Ø90mm, cut hole size from 50mm to 80mm , to install the mounting hole larger than 50mm up to 80mm, it can replace any shape of panel lights or downlights.
• Made of die cast aluminium housing, and high quality PP diffusor, high bright with 800 lumens,
• Compact design with driver separately, anti rust, insect resistance , no dark areas.
• The rimless shape allow to reach 180º beam angle , perfect decoration lighting
Product Specification
| Power Consumption | 9W |
| Mount Type | Concealed |
| Lamp Shape | Round |
| Dimmension (D*H) | Ø90mm*H40mm |
| Cut Out Size | Ø50-80mm |
| Work Voltage | AC85-265V |
| Lamp Type | LED SMD2835 |
| Housing Materials | Die Cast ALuminium |
| Luminous Efficiency | 80-90lm/w |
| Lumens | 750-800lms |
| Diffusor Mateiral | PP |
| Frequency | 50/60Hz |
| LED Driver | Isolated / Non Isolated available |
| Power Factor | >0.5 |
| Colour Rendering Index (CRI) | Ra>70/80 |
| Dimmable | Non-Dimmable |
| Colour Temperature | 3000K 4000K 6000K 8000k |
| Warranty | 2 years |
Lighting Application
• General room lighting in ceilings , Suspended Ceilings
• Interior lighting such as class room, study room , super market, store, warehouse etc.
• Coffered ceiling lighting
• Under cabinet lighting
• Elevator lobby areas
• Sculpture and statue illumination
Warnings
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
