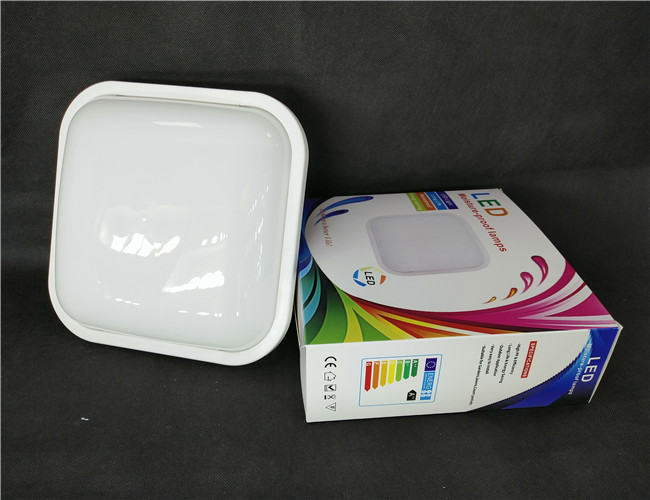

LED Square Bulkhead Lights Metal Bracket 18W 24W Exterior Waterproof Lighting
Manufacturer Description
• Special economical design , all PP plastic housings and metal bracket to reduce the cost effectively
• Work voltage: AC170-300V , non isolated driver
• 90% energy saving, reduce your electricity bill as much as 90%.
• 90-100lm/w makes this LED wall light is incredibly bright . CRI is greater than 70 , it can fulfill all your need.
• Weatherproof LED wall light , it is perfect for industrial , commercial and property applications , Such as security, entrances , stairways , storage , boundary lighting .
• The LED Wall Light is genuinely a resilient item , suitable area: Entryway, Passage, Terrace, Stairways , Patio Area , Parlor, Bed Room, Bathroom, Research Study Space , Restaurant , Passage , Coffeehouse, etc
• Waterproof rating: IP65 , can be used as Outdoor/Indoor Wall Light
• Ideal for decorating your house and garden or illuminating paths, stairways, pavements.
18W /24W nd Wall Lamp Specifications
| Model No. | XT-FCDFX-18W / 24W |
| Product Type | Wall Mounted W |
| Bulkhead Shape | Square |
| Dimmension (mm) | 165*165*65 / 220*20*65 |
| Voltage Rating | AC170-300V |
| Light Source | LED 2835 SMD |
| Rated Wattage | 18W /27W |
| Metal Bracket | Yes |
| Luminous Efficency | 90-100lm/w |
| Output Colour | 3000K 4000K 6500K |
| Work Frequency | 50/60Hz |
| Power Efficiency | >95% |
| Power Factor | >0.5 |
| CRI | Ra>70 |
| Beam Angle | 120° - 140º |
| Finish Colour | Black / White |
| Housing Materials | Diffuser:PP / Base:PP / Metal Bracket |
| IP Rate | IP65 |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 10-70% RH |
| Dimmable | No |
| Guarantee | 3 years / 2 years / 1 year |
| Certificate | IP65 CE RoHS BIS |
| Application | Indoor / Outdoor Lighting |
| PCS/CTN | 40pcs / 20pcs |
| CTN Size | 67*36*36 cm / 47*39.5*47 cm |
Lighting Application
Perfect for interior wall and exterior wall and ceiling lighting , ideal lighting for Tunnels , Parkinig lots , the Subway Stations , Workshops , Corridors , Community , Bath Rooms , Bed Rooms , Dinning Rooms , Restaurants , Office , Kitchen , Hallway , Utility , Staircase , Garden , Countyard , Bus Station , Shed , Patio , Car Washing Stations etc.
Warnings
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
