5W 9W 16W 22W LED Recessed Ultra Thin Ceiling LED Light Retrofit Panel Slim

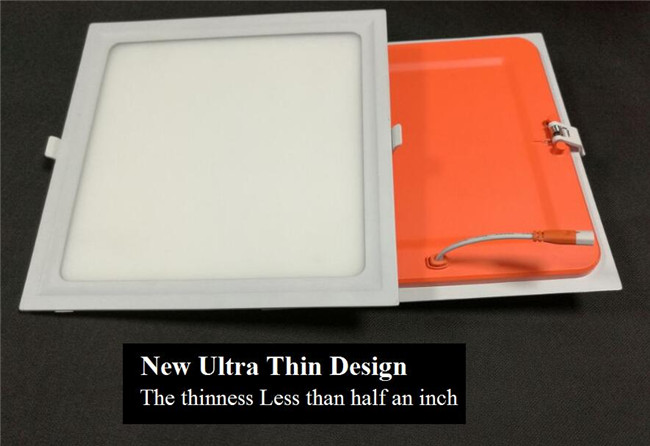

Our product is super easy to install, and requires only 2 inches of clearance, due to the Ultra Thin design ! the product is vapor proof so it is safe to use in damp locations including bathrooms , hospitals , hotels , homes , stores , etc
We have designed our product to be the most high-end state of the art panel on the market . Our LED light will also help you save on your electricity bill ! Switching over from traditional fluorescent fixtures can save you up to 90% on your energy usage
Product Usage
This high-quality panel light comes with a stylish and slim design . It is fitted with reliable LEDs to ensure high performance and low energy consumption .
This LED panel light is suitable for office conference room , lecture hall , reception room , supermarket , shop etc
Product Specifications
• SLIM LED panel light.
• Luminous efficacy : 80lm/W.
• Color temperature : 3000K , 4000K , 5000K , 6000K
• PF : >0.5
• CRI : >80.
• External driver.
Advantages
• New model panel series designed specially for good quality at very competitive prices
• Cable terminal is anti drag , easy dissasembly , and conveniet appliabie safety
• Double spring design , rich elasticity and easy to install
• Thermal conductivity nylo back plate, fast heat dissaption
• Aopts narrow bezel design , with light leakage prevention design
• Easy installation. Can be easily fitted instead of ordinary recessed light fixture
Technical Data
| Item No. | XT-SLG-SQ |
| Dimension (mm) | 85*85*20 | 120*120*20 | 170*170*20 | 225*225*20 |
| Opening Size (mm) | 75*75 | 110*110 | 155*155 | 210*210 |
| Wattage | 5W | 9W | 15W | 22W |
| Input Voltage | AC85~265V |
| Current | 260-280mA or 280-300mA |
| Luminous flux | 70~90lm/W |
| Light source | SMD2835 |
| Material | Aluminium + PP+Thermal Conductiivity Nylon |
| Color rendering index | >80 |
| Driver | Insolated Driver / BIS Driver |
| Color temperature | 3000k-3500K / 4000K~4500K / 6000K~6500K |
| Light color | Warm white / Neutral white / Cool white |
| Working temperature | ‘-20℃±45℃ |
| Beam angle | 120 º |
| IP code | IP44 |
| Life span | 40000 Hours |
| Warranty | 2 years |
| MOQ | 500 pcs /item |
Application
* Beautiful decoration to make life more enjoyable
* Living room , bedroom , kitchen , bathroom
* Conference , meeting room , showroom , showcase
* School , university , hospital , hotel
* Supermarket , department store or even more
