Flush Mounted 2 Color Round LED Panel Light With Improved Flat Cable 6+3W
2 Color Panel Product Features
● More light color combination for your choice
Blue+ Day light , Green+ Day light , Red+ Day light , Yellow+ Day light , Pink+Day light
● Easy to use, keep turn on/off continuously with 3 modes
● Easy to install: cut out a 80mm diameter hole, connect driver wire with the power wire , wrapped insulating tape
around, and the springs hold it in place. Just use your home electricity switch to control the color.
● Input Voltage: AC85-265V, LED SMD lamp last 40000hours.
● With paten design output cable, more stable and fasten for the cable from the light to the driver.
● Improved white flat driver cables, high quality apperance
● Energy saving, environment friendly without IR and UV radiation.
● 85-265V AC work voltage, it can light all over the world
● Perfect for office lighting , house , bedroom ceiling lights , bathroom ceiling lighting , hotel lighting ,stage lighting
and etc.
| Item No | Wattage | Dimension (mm) | Hole Size (mm) |
| XT-SSM-3+3W.R | 6W (3W+3W) | Ø105×30 | Ø80 |
| XT-SSM-6+3W.R | 9W (6W+3W) | Ø145×30 | Ø120 |
| XT-SSM-12+4W.R | 16W (12W+4W) | Ø190×30 | Ø175 |
| XT-SSM-18+6W.R | 24W (18W+6W) | Ø240×30 | Ø210 |
| XT-SSM-3+3W.SQ | 6W (3W+3W) | 105×105×40 | 75x75 |
| XT-SSM-6+3W.SQ | 9W (6W+3W) | 145×145×40 | 110x110 |
| XT-SSM-12+4W.SQ | 16W (12W+4W) | 190×190×40 | 160x160 |
| XT-SSM-18+6W.SQ | 24W (18W+6W) | 240×240×40 | 210x210 |
Technical Specification
| Item Type | panel lights |
| LED type | SMD2835 |
| Power | 3W+3W 6W+3W 12W+4W 18W+6W 24W+12W |
| Voltage | AC85-265V |
| Inner color optional | daylight , warm white , cool white |
| Outer color optional | white, blue , red , green , pink , warm white |
| Shape type | Round / Square |
| Installation type | Recessed |
| Working temperature | -40C - +50C |
| Life time | 40000hrs |
| Warranty | 2 years |
Patent connect cable design as photo , match with white flat cable, more safe and fasten

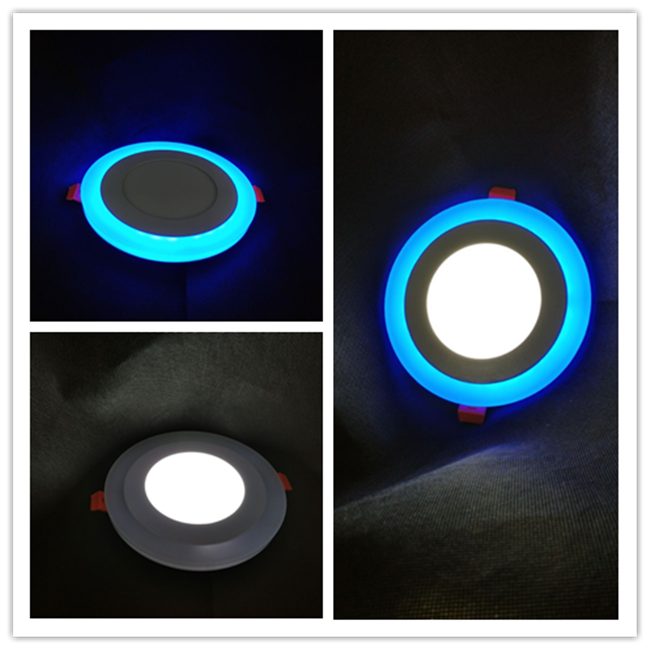

To keep switch On/ Off continuously , three light modes as below
1. Outline edge light
2. The centre light
3. Both light
Application
To be used specially for atmospher lighting such as club, exhition hall, hotels and restaurant etc
Also widely used for illumination and decoration lighting especially for indoor lighting such as dinning room , bed roon , kitchen, hallway, living room , office building, super market , meeting room , showroom , and other building lighting etc.
