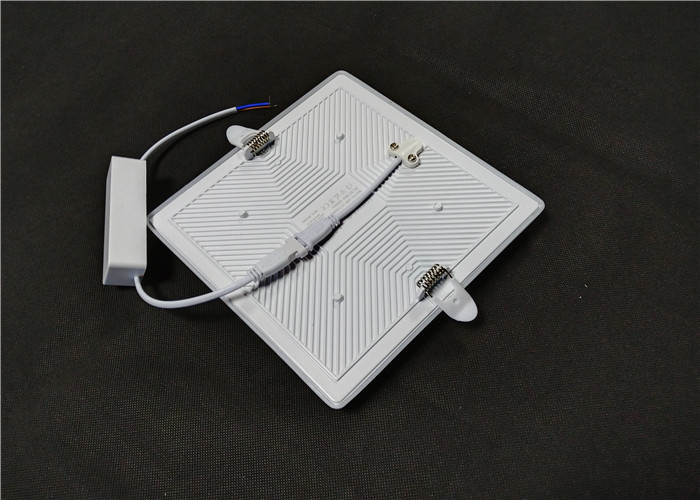

White Square Edgeless Recessed LED Panel Light 24W Ideal For Indoor Lighting
Technical Descriptions:
• CCT: 3000K/4000K/6500K
• Intelligent constant current driver, protection from overheat, short circuit and under voltage
• Recessed mounted LED Panel Light
• High-quality chip
• High light efficiency more than 90lm/w , better lumen maintenance
• Luminaire shell in die cast aluminium housings
• 180° wide view angle
• Quick and easy installation
| 24W Frameless Panel Photometric Parameters |
| Project | Parameter |
| LED | SMD2835 |
| Luminous Efficiency | >90lm/w |
| Luminous Fluxe | 2290lms |
| CCT | 3000K 4000K 6000K 8000K |
| CRI | >70 |
| Beam Angle | 180º |
| LED Lifespan | ≥40000 Hours |
| 24W Frameless Panel Electrical Parameters |
| Driver Input Voltage | AC85-265V /50-60Hz |
| Power Factor | >0.5 |
| Rating IP | IP20 |
| Material | Die Cast Aluminium+PP Diffusor |
| Frame Finishing | White |
| Installation | Recessed |
| Working Temperature | -30~+45℃ |
| Storing Temperature | -40~+60Ċ |
Specifications For all Models
| Shape | Watt | Driver | Luminous Efficiency | Size
(mm) | Cutout
(mm) | CCT | PCS/CTN | CTN Size
(cm) |
|
Round | 9W |
Isolated
85-265V |
90-100lm/w | ø90 | ø65mm | 3000K-8000K | 100 | 53.5*38.5*29 |
| 18W | ø120 | ø100mm | 3000K-8000K | 50 | 55*22*33 |
| 24W | ø170 | ø150mm | 3000K-8000K | 20 | 75.5*22*22.5 |
| 36W | ø225 | ø200mm | 3000K-8000K | 20 | 95*22*27.5 |
|
Square | 9W |
Isolated
85-265V |
90-100lm/w | 90*90 | 65*65 | 3000K-8000K | 100 | 53.5*38.5*29 |
| 18W | 120*120 | 100*100 | 3000K-8000K | 50 | 55*22*33 |
| 24W | 170*170 | 150*150 | 3000K-8000K | 20 | 75.5*22*22.5 |
| 36W | 225*225 | 200*200 | 3000K-8000K | 10 | 95*22*27.5 |
Applications For
1. General room lighting in ceilings, suspended ceilings
2. Interior lighting such as bed room, class room, study room, super market, store, wareshouse
3. Coffered ceiling lighting
4. Cabinet lighting
5. Lobby lighting
6. Sculpture and statue illumination
Warnings
1. Cut off the power before installation
2. Can't be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
