7W round movable SMD2835 downlight white plastich+aluminium housings
Product Benefits
1. Elegant design
2. No UV radiation
3. No Flickering
4. Best Quality SMD 2835from
5. Premium Quality Power Driver with lowest power factor saver & high RA
6. Easy Installation
7. With the advantages both for SMD and COB
8. Low Maintenance
Specification for SMD downlight
| Item No: | XT-SMD-7-SQ |
| Item Name: | SMD Downlight |
| Lamp Power: | 7W |
| LED Driver | Non isolated |
| Dimension(mm): | 90*90*42mm |
| Cut-out (mm): | 75*75mm |
| Housing Material: | plastic+aluminium (inside) housings |
| Color Temperature: | 3000-3500K / 6000-6500K |
| Luminous Flux: | 630lm |
| Input Voltage: | AC100-265V |
| LED Type: | 2835 SMD /8pcs |
| Color Rendering Index(CRI): | Ra>70 |
| Power Factor(PF): | >0.5 |
| Beam Angle: | 36º |
| Working Lifetime(Hour) : | >40000 hrs |
| Luminous Efficiency: | 90lm/w |
| Warranty: | 2 years |
SMD downlight packaging information
| Shape | Watt | PCS/CTN | GW/CTN
(kgs) | CTN Size
(cm) |
| Round | 3W | 100 | 6.00 | 44*25.5*34 |
| 5W | 100 | 8.00 | 52*27.5*39 |
| 7W | 100 | 10.00 | 52*27.5*39 |
| 9W | 60 | 9.00 | 52*28*37 |
| 12W | 60 | 12.50 | 61*33*44 |
| Square | 3W | 100 | 6.00 | 44*25.5*34 |
| 5W | 100 | 8.00 | 52*27.5*39 |
| 7W | 100 | 10.00 | 52*27.5*39 |
| 9W | 60 | 9.00 | 52*28*37 |
| 12W | 60 | 12.50 | 61*33*44 |

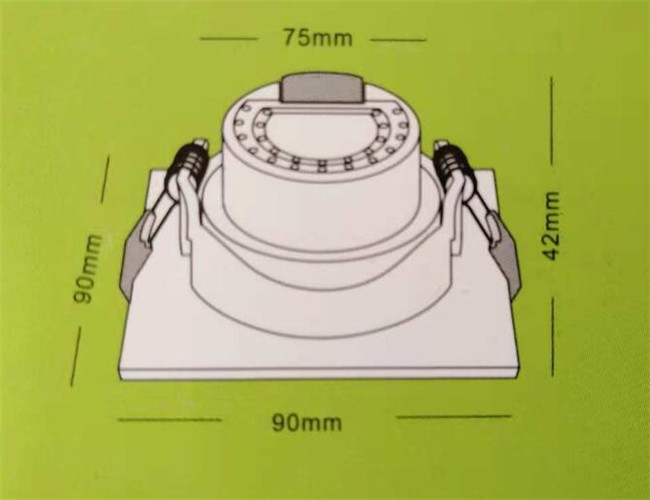

7W SMD Spotlight Demmension

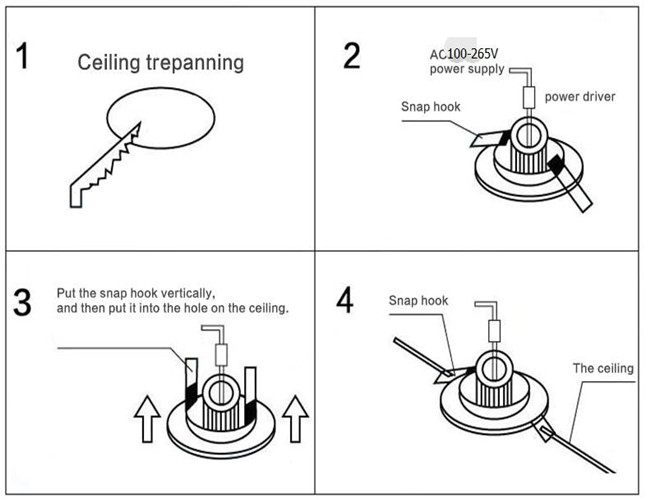

Installation Illustrations:
Applications:
1. Public rooms and areas
2. Stairways , corridors , foyers
3. Replacement of traditional halogen lamp or incandescent lamp
4. Medical lighting
5. Residential lighting:bedroom ,study ,kitchen ,bathroom ,sitting room , ceiling lighting
6. Commercial lighting : shop , exhibition , hotel lobby ,office ,display case lighting ,under cabinet lighting , art lighting ,etc
Working conditions
Not suitable for use in extreme conditions. Normal working conditions is -20° +45°
