12W PC+Aluminium square embedded SMD spotlight 90lm/w super bright LED downlight
Product Description
• Long service lift up to 40000 hrs , 2 years warranty
• Strong heat dissipation design : PC+Aliminium housings, with many small heat dissiaption holes on radiator top, which can solve the problem of heat dissipation effectively
• Energy saving , intelligent protection
• High quality PMMA lens , make it super bright up to 90lm/w.
• Light in weight , more economy and durability
• Widely voltage AC100-265V , light all over the world
• Integarated design with built in driver , space saving and redcue the driver cost
Parameter for SMD downlight
| Item No: | XT-SMD-12-SQ |
| Item Name: | SMD Spot light |
| Lamp Power: | 12w |
| LED Driver | Non isolated |
| Dimmension (mm): | 135*135*51 mm |
| Cutout Size (mm): | 120 *120 mm |
| Lens : | Acrylic |
| Housing Materials: | ABS+PC+ Aluminium housings |
| Color Temperature: | warm white / white |
| Luminous Flux: | 1140 lumens |
| Input Voltage: | AC100-265V |
| LED Type / Q'TY | 2835 SMD /15pcs |
| Color Rendering Index(CRI): | Ra>70 |
| Power Factor(PF): | >0.5 |
| Beam Angle: | 36º |
| Working Lifetime(Hour) : | >40000 hrs |
| Luminous Efficiency: | 90lm/w |
| Warranty: | 2 years |
Packing Details
| Shape | Watt | PCS/CTN | GW/CTN
(kgs) | CTN Size
(cm) |
| Round | 3W | 100 | 6.00 | 44*25.5*34 |
| 5W | 100 | 8.00 | 52*27.5*39 |
| 7W | 100 | 10.00 | 52*27.5*39 |
| 9W | 60 | 9.00 | 52*28*37 |
| 12W | 60 | 12.50 | 61*33*44 |
| Square | 3W | 100 | 6.00 | 44*25.5*34 |
| 5W | 100 | 8.00 | 52*27.5*39 |
| 7W | 100 | 10.00 | 52*27.5*39 |
| 9W | 60 | 9.00 | 52*28*37 |
| 12W | 60 | 12.50 | 61*33*44 |

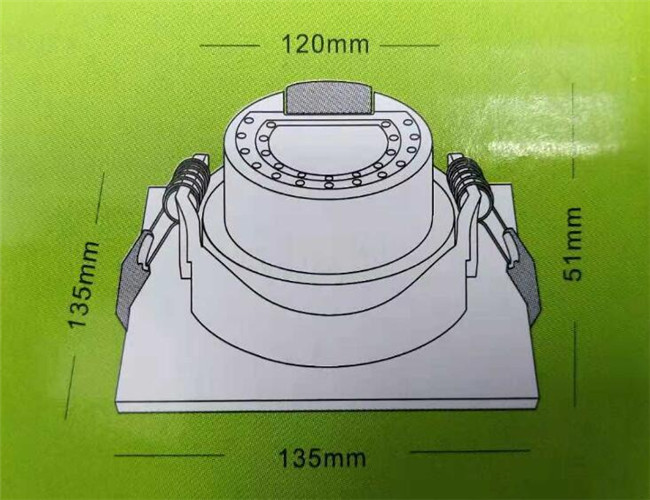

12W LED Spot Light Dimmension
Install Graphic
Applications:
Corridor , restaurant , bedroom , living room , great hall , kitchen , super market , medical lighting , display case , hotel lobby , exhibition , sittinig room , foyers , etc.
